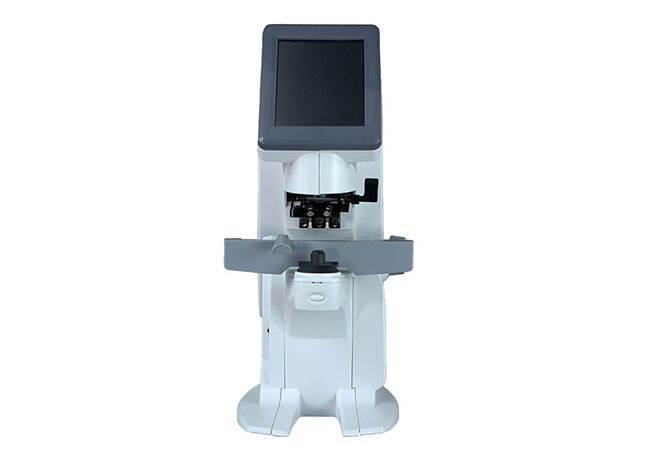

Auto Lensmeter

Features

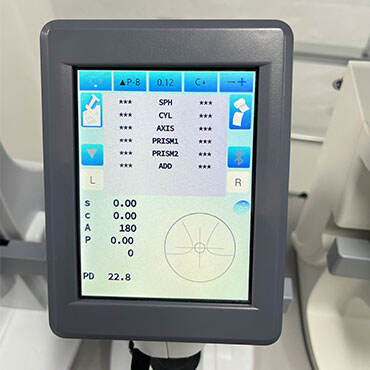

- Auto detection: U can measure sphere, cylinder, axis, and prism in <3 seconds.

- UV filter detection: Automatically identifies and displays UV-blocking lenses.

- Printer integration: Built-in thermal printer outputs measurement reports.

Specifications

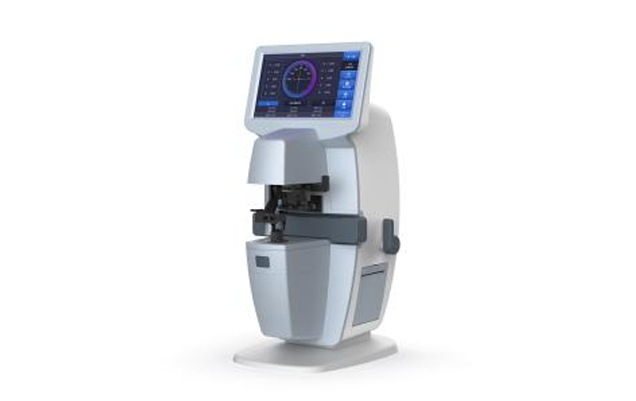

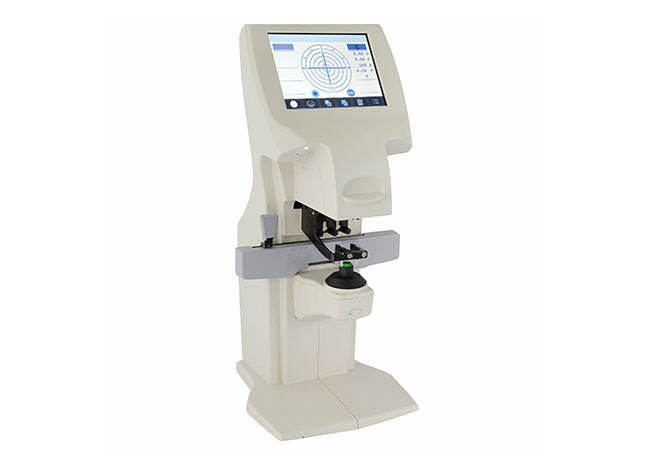

Advantages	Penguin Pro	Koala	AL-100
All-in-one PD/UV/Blue-Ray/ADD; Bluetooth & USB; built-in printer	Full PD, UV, Blue-Ray, ADD; Bluetooth & RS-232/USB; built-in thermal printer; metal base	PD, PH, UV, Blue-Ray, PH; Wi-Fi app viewing; built-in thermal printer; metal base	Compact PD, PH, UV; optional thermal printer; plastic base; high-res capacitive screen
Sphere Range	−40.00 D to +25.00 D	−25.00 D to +25.00 D	−25.00 D to +25.00 D
Cylinder Range	0.00 D to ±10.00 D	−10.00 D to +10.00 D	±9.99 D

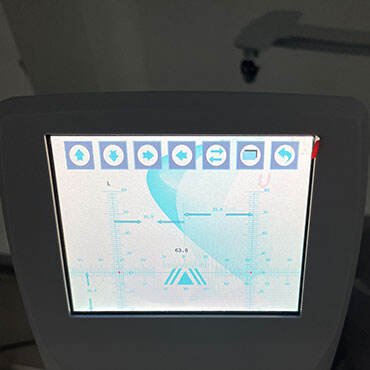

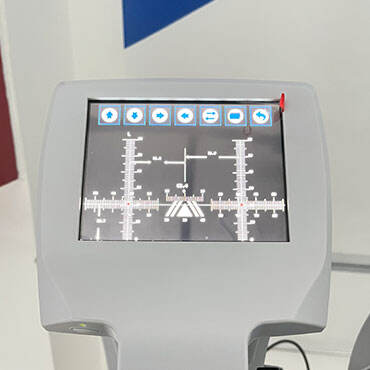

PD Measurement	Yes	Yes (20–39.5 mm single; 40–85 mm binocular in 0.05 mm steps)	40–82 mm (0.25 mm steps)

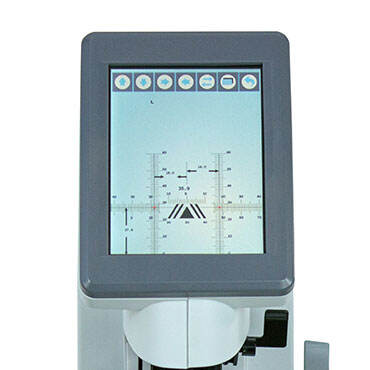

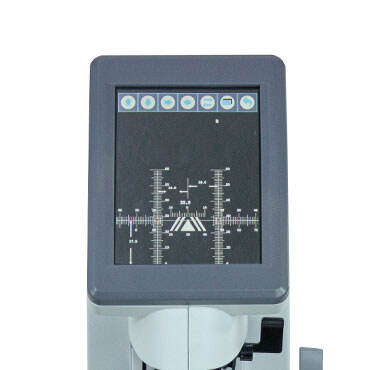

Display	5.6″/5.7″ capacitive LCD	5.7″ capacitive LCD	800 × 480 capacitive screen
Connectivity	RS-232C, Bluetooth BLE, USB	USB, Wi-Fi (app viewing)	USB
Power	AC 110–240 V, 50–60 Hz	AC 90–240 V, 50/60 Hz	AC 100–240 V, 50/60 Hz → DC 12 V, 45 W
Bluetooth	Yes	No	No
Printer	Built-in thermal	Built-in thermal	Optional
Base	Metal	Metal	Plastic
Weight	Approx. 10 kg	Approx. 10 kg	Approx. 10 kg
Power	AC 100–240 V, 50–60 Hz, 30 W	AC 100–240 V, 50–60 Hz, 30 W	AC 100–240 V, 50–60 Hz, 30 W
Footprint	Approx. 300 × 300 × 450 mm	Approx. 300 × 300 × 450 mm	Approx. 300 × 300 × 450 mm

Competitive Advantage

- Speed & accuracy: Reduces Rx turnaround time by up to 50%.

- Versatile connectivity: USB and RS-232 ports for EMR and POS integration.

- User-friendly interface: Intuitive menu with minimal training required.
