Streamline subjective refraction with Hongdee’s auto phoropter. U can conduct refraction tests with minimal chair adjustment—motorized lens changes occur in <1 second. The built-in protocols guide U through sphere-cylinder refinement, boosting patient throughput. Integration with the auto refractometer transfers starting values automatically.
- Motorized lenses: Stepper-motor control for rapid power changes.
- Preprogrammed refraction protocols: Includes cross cylinder, Jackson cross, and binocular balancing.
- Wireless remote: Infrared remote allows U to adjust from patient’s side.

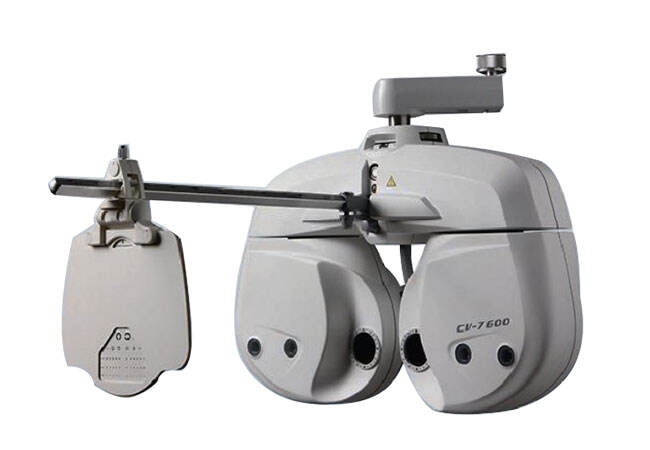

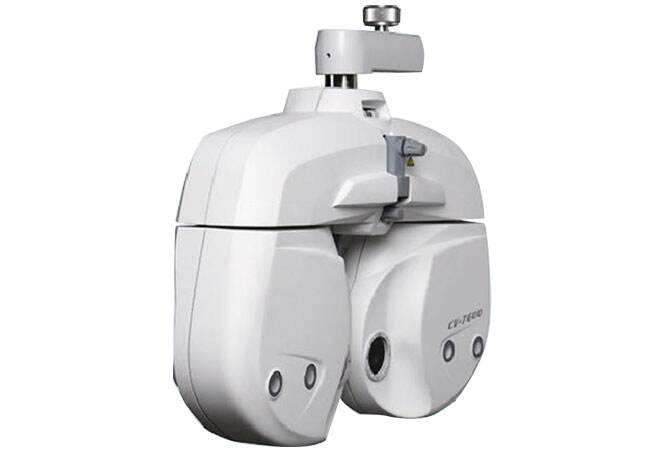

| Advantages | DAP-100 | DAP-8 |
| Picture | |
 |
| Wireless Bluetooth; preset optometry procedures; easy cleaning |
• Bluetooth-enabled for seamless data transfer • Preset and customizable exam workflows • Built-in LED near-card illumination • Dismountable face shield |
• Bluetooth-enabled for wireless control • Preset optometry workflows • Built-in LED near-card illumination • Removable face shield for hygiene |
| Sphere Range | –19.00 D to +16.75 D (0.25/0.50/1.00/3.00 D steps) | -19D~+16.75D |
| Cylinder Range | –6.00 D to +6.00 D (0.25 D steps) | 0D~-7.25D |
| Axis Range | 0° to 180° (1°/5°/15°/30°/45° steps) | 0° to 180° (1°/5°/15°/30°/45° steps) |
| PD Adjustment | Distance 52 – 80 mm; Near 48 – 76 mm (0.5 mm steps) | Distance 50 – 82 mm; Near 46 – 78 mm (0.5 mm steps) |
| Prism Range | 0 – 20Δ (0.1 Δ/0.5 Δ/1 Δ steps) | 0 – 15Δ (0.1 Δ/0.5 Δ/1 Δ steps) |
| Cross-Cylinder Lens | ±0.25 D | ±0.25 D |
| Near-Point Card | Built-in with white LED illumination | Built-in with white LED illumination |
| Display & Control | 7″ touchscreen; 360° rotatable control panel | 7″ touchscreen; 360° rotatable control panel |
| Connectivity | Bluetooth; LAN; RS-232 | Bluetooth; LAN; RS-232 |
| Power Supply | AC 110 V/60 Hz or AC 220 V/50 Hz, 90 W | AC 110 V/60 Hz or AC 220 V/50 Hz, 90 W |
| Copy and paste this table to showcase key Auto Phoropter models, their essential parameters, and concise advantages for quick user inquiries. | ||
- Efficiency: Reduces total refraction time by >40% compared to manual phoropters.
- Data integration: Seamless connection to clinic information systems via LAN.
- Patient experience: Smooth, silent lens changes enhance patient comfort.
