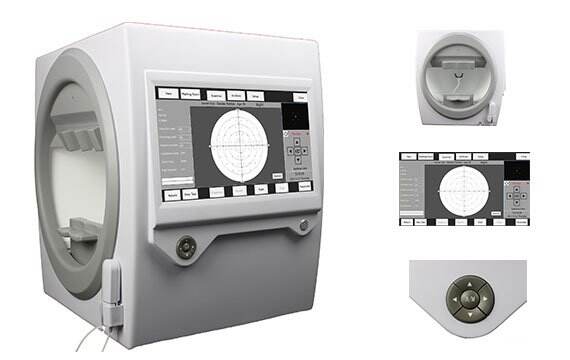

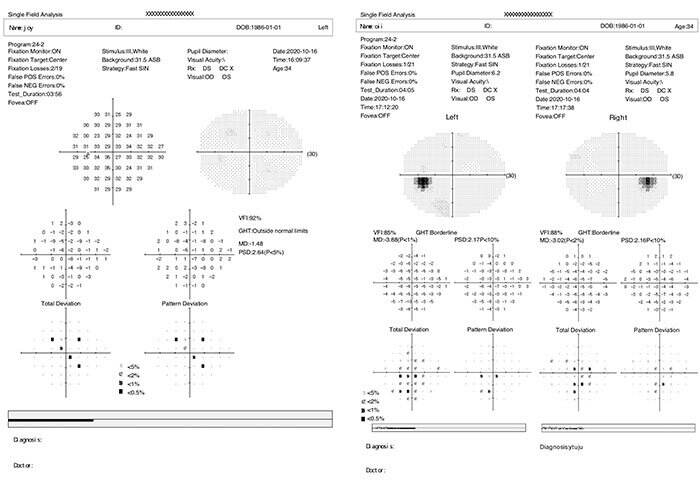

Accurate visual field assessment is critical for diagnosing glaucoma and neuro-ophthalmic conditions. Hongdee’s auto perimeter offers customizable test patterns, rapid SITA-like algorithms, and real-time fixation monitoring. U can generate normative database comparisons and produce PDF reports directly from the unit.

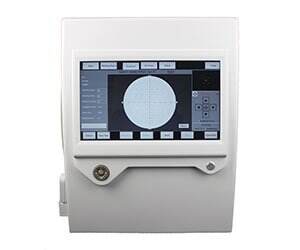

1. Intuitive and straightforward touch screen interface facilitates the operation by simply inputting patient’s name, gender and age, it will be ready for testing.
2.built-in Voice prompts and voice tutorial function tremendously increase the operator’s working efficiency and reduce the workload, meanwhile, effectively guide the patients to follow the procedure during the test.

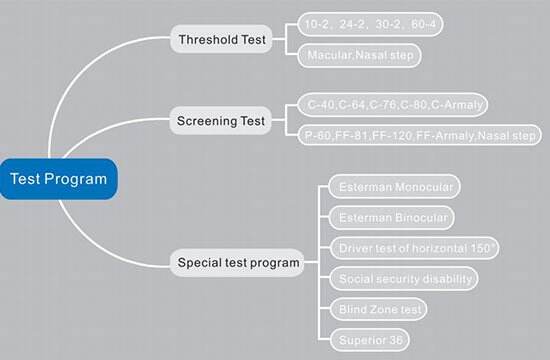

3. A wide array of testing options up to 22 programs cover the majority of different eye disease related with vision field.
| Model | AP-100 |
| DB Value Range displayed | 0~40db |
| Stimulus Intensity Range | 1asb~10000asb |
| Stimulus Size | Goldmann III |
| Stimulus Color | White |
| Stimulus Duration Time | 200ms/ Adaptive |
| Max Measurement range | 90° |
| Test Distance | 30cm |
| Test Mode | Static |
| Stimulus quantity | 456 points |
| Stimulus Plane | Aspherical surface |
| Background Illumination | White 31.5 asb ( 10cd/m2 ) |
| Customize test program | ● |
| Auto eye recognition | ● |
| Blind zone range test | ● |
| Stimulus Source | LED |

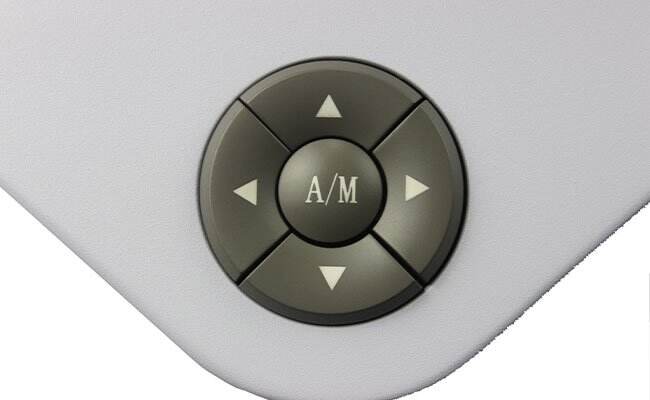

| Chinrest Control | Touch Screen,Keyboard and mouse control,Button control |

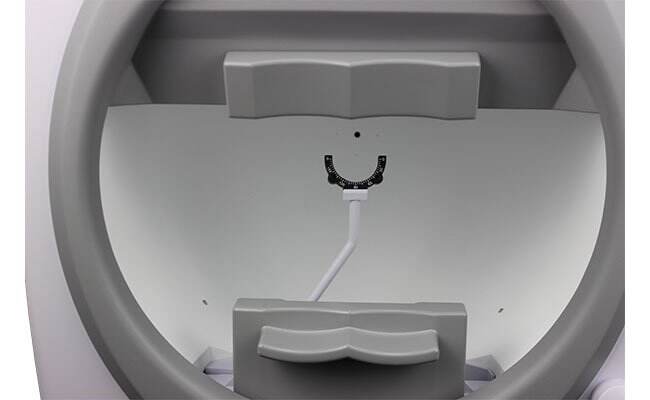

| Head Movement | Chinrest and forehead-rest move simultaneously |
| CPU:1.6 GHz; RAM: 4 GB; | |
| PC Configuration | Hard disk: 120 GB; |
| Operation system: Windows 10; | |
| LCD:14 " Capacitive Touch screen; | |

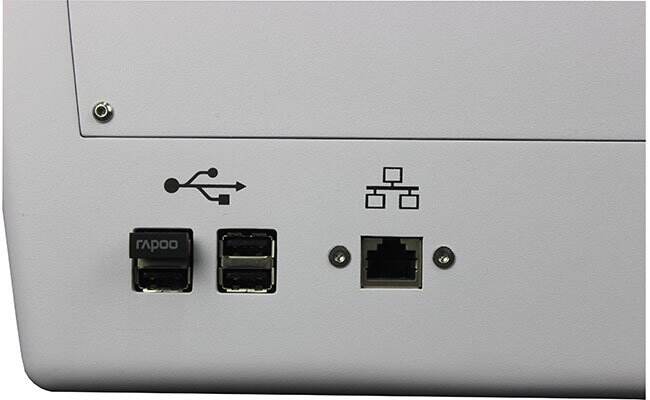

| Networking: Ethernet & WIFI; | |
| Dimension | 480mm(L)*430mm(W)*528mm(H), 14kgs |
| Packaging | 550mm(L)*480mm(W)*640mm(H), 19kgs |

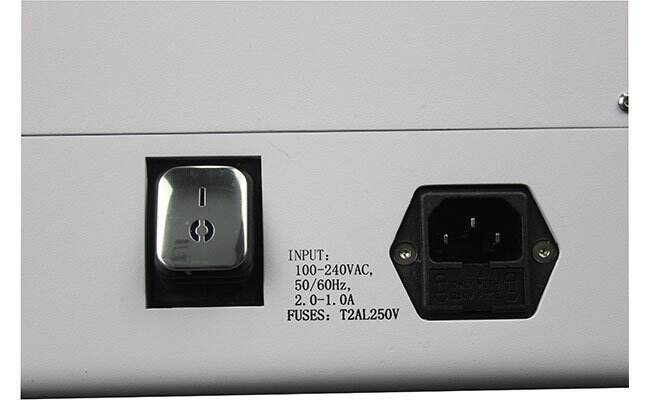

| Others | Input Voltage: AC 100 – 240V,50 ~ 60Hz |
- Efficiency: SITA-like testing reduces test time by up to 50% compared to full-threshold methods.
- Data management: Onboard storage for >10,000 tests, with DICOM export for EMR integration.
- User support: Built-in online tutorial and remote technical assistance via network link.
We specialize in providing high-quality diagnostic devices, refraction systems, low vision aids, and ophthalmic furniture — all backed by a complete supply chain, strong OEM/ODM service, and a customer-first philosophy.
