Optical lens edger machine types for eyeglasses and sunglasses:
● Auto lens edger machine
● Manual lens edger machine

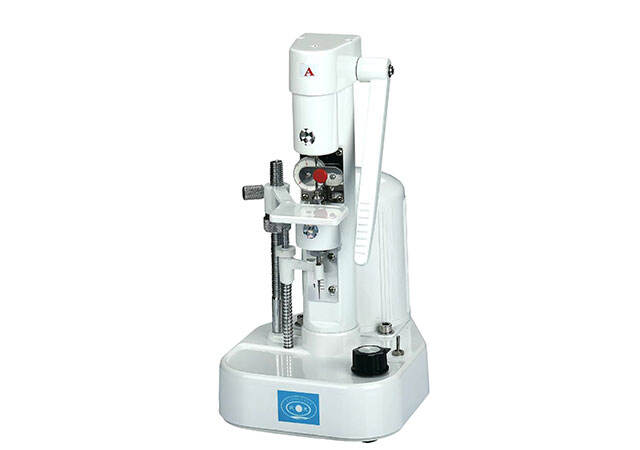

● Lens drilling machine
● Lens cutter machine
● Lens polisher machine
● Lens heater machine
● Lens groover machine
From lens groover, drilling, heater, cutter, polisher, and edger machine, multiple optical lens edger machines in Hongdee. Send your inquiry now to get these product details and prices.

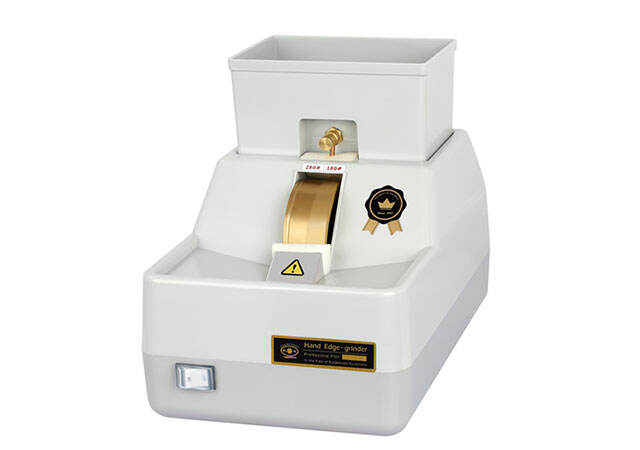

♦ Manual Lens Edger Machine Hand manual lens edger machine is specialized for glasses and resin lens edging.

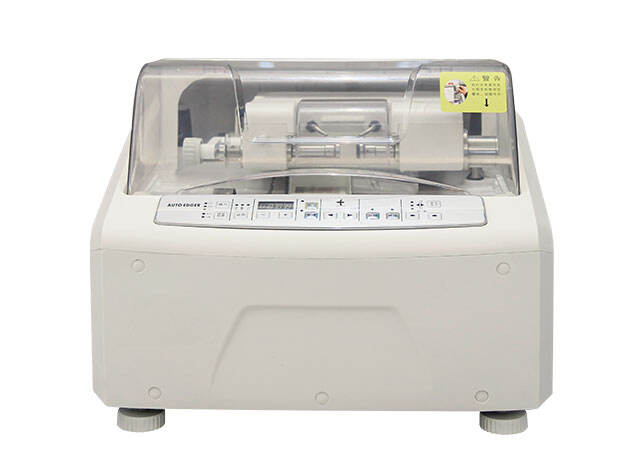

♦ Auto Lens Edger Machine With the advanced technology and the imported PC wheel.

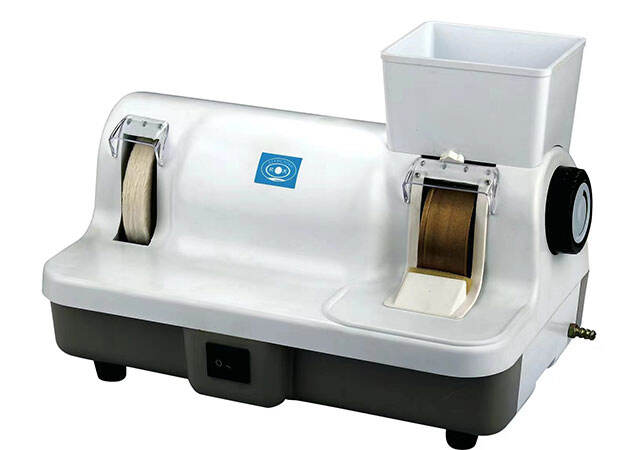

♦ Lens Polisher Machine wheels operating together, 35mm of rough grinding, fine grinding, edge groove grinding, and 1 piece of polishing cloth wheel.
♦ Lens Cutter Machine Put a lens which has been marked on the axis on the lens meter and layout blocker into the position of the lens and then fix it by the left knob and be ready to cut.
♦ Lens Heater Machine Specialized for frame heating.
- Automatic edge detection: Laser guidance for precise bevel placement.
- Multiple bevel options: Beveling angles from 0°–15°.
- Digital interface: 4.3″ LCD shows edging parameters in real time.

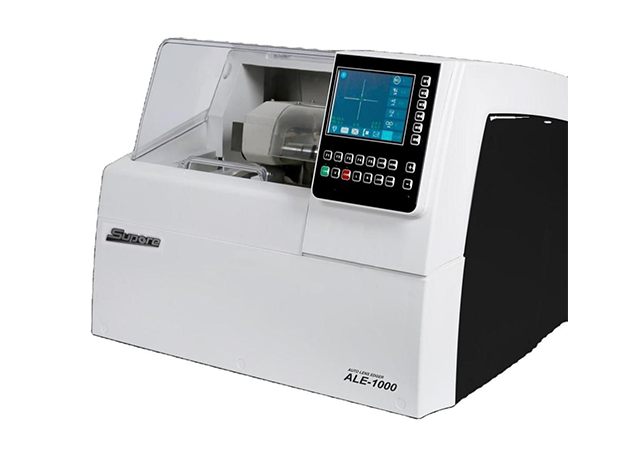

| ALE-1000 | Auto lens edger |
| Dimension: | 620mmx520mmx600mm |
| Weight: | 55kg |
| Voltage: | AC220W110V 50/60HZ |
| Rower: | 550w |
| Accuracy : | Tolerance ±0.01mm |
| Size range: | 20mm~80mm |
| Axis accuracy: | 0.1° |
| The adjustable step length of size: | 0.05mm |
| Clamping pressure: | 80KG |
| Material: | PC、Glass. CK HL HR TC |
| The processing type: | pointy edges, platband, bevel polishing, platband polishing. Screen: high-resolution 640/0, truecolor; 5.7 inch TFT LCD, lensphotograph displayed as 1:1 and with use-friendly operating interface. |
| ST-1200 | |
| Dimension: | 325mmx250mmx205mm |
| Weight: | 5kg |
| Voltage: | AC230V/115V 50/60HZ |
| Power: | 60W |
| ADD adjustment range: | 6mm |
| Screen tilt angle: | 0-130° |
| Max storage: | 500 sets |
| Touch screen: | 7 inch capacitive screen |
| Quantity of connecting with the main machine: | 2 units |
- Precision: ±0.1 mm edging tolerance reduces rework.
- Versatility: Edges glass, CR-39, and polycarbonate lenses.
- User safety: Automatic water flushing keeps lenses and wheels cool.
We specialize in providing high-quality diagnostic devices, refraction systems, low vision aids, and ophthalmic furniture — all backed by a complete supply chain, strong OEM/ODM service, and a customer-first philosophy.
