Streamline your’s exam lane with a Hongdee refraction unit that integrates all necessary instruments onto a single, motorized platform. From a basic single-instrument table to a fully configured refraction station with patients' comfort, this offering cuts down walking distance between devices, improving patient throughput. The adjustable elevation ensures proper posture for both patient and examiner.
- Customizable layouts: you can configure combinations of slit lamp, phoropter, lensmeter, and chart projector in one unit.
- Ergonomic design: Adjustable armrests and footrests for patient comfort during refraction.
- Built-in storage: Lockable drawers to organize trial lens sets, occluders, and other accessories.

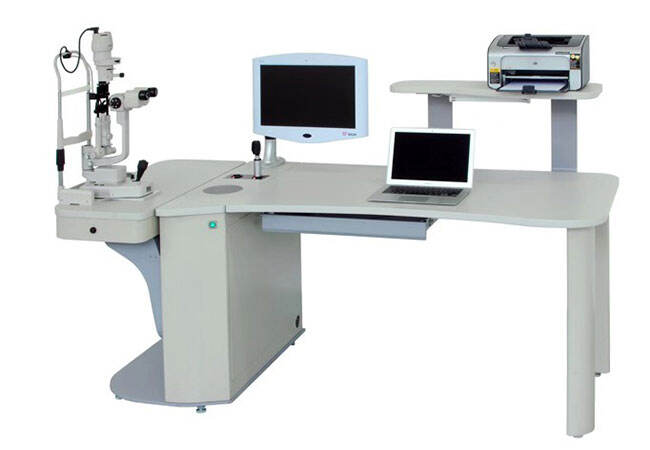

| Parameter | Titan | Hulk | HD-700A | HD-700C | HD-120 | ESC-2000 | HD-100 | HD-3200 |
| Fit Instrument(s) | Auto ref/keratometer or Slit lamp | Auto ref/keratometer | Auto ref/ keratometer or Slit lamp | Auto ref/keratometer | Slit lamp | Auto ref/keratometer or Slit lamp | Auto ref/keratometer or Slit lamp | Auto ref/keratometer or Slit lamp |
| Tabletop Size | 1000x520 mm (39.4″ x 20.5″) | 1000x520 mm (39.4″ x 20.5″) | 350 x 200x25 mm (customizable up to 700 x 400 x 40 mm) | 1130x520 mm (44.5″ x 20.5″) | (Not specified) | 915x420 mm | 915x420 mm | 915x420 mm |
| Chair Elevation Range | 520-670 mm (20.5″ - 26.4″) | 520-670 mm (20.5″ - 26.4″) | (N/A-no chair elevation) | 520-670 mm (20.5″ - 26.4″) | N/A-separate chair may be used) | (500-660)±10 mm | (N/A-separate chair may be used) | 520-670mm (20.5”-26.4”) |
| Table Rotation Angle | 0-90° | 0-90° | 0-360° | 0-90° | 0-90° counter-clockwise | 0-180° | 0-90° | 0-90° |
| Phoropter Arm Swing/Swivel | Vertical swing 25° | Swivel 0 - 90° | Swing arm (up/down) ±30° | Swing: 0-300° (arm rotation) | (N/A) | (N/A) | (N/A-fixed swing) | (N/A-fixed swing) |
| Seat Rotation Angle | (N/A) | (N/A) | 0-360° | (N/A) | (N/A) | 0-90° | (N/A) | (N/A) |
| Swing Arm Rotation Range | (N/A) | (N/A) | 0-300° | 0-90° | (N/A) | (N/A) | (N/A) | (N/A) |
| Charging Ports | (N/A) | (N/A) | (N/A) | 2 pcs | Support ophthalmoscope/ retinoscope 3 pcs | 3 pcs | 2 pcs | 2 pcs |
| Swing Arm Lift (Phoropter) | 1340-1640 mm (52.8″-64.6″) | 1340-1640 mm (52.8″-64.6″) | 900-1500mm（35.4’’-59’’） | 1300-1650mm(51.2”-64.9”) | (N/A) | (N/A) | (N/A) | (N/A) |
| Chair Elevation + Rotation | Yes (elevate & rotate) | Yes (elevate & rotate) | Yes (elevate & rotate) | Yes (elevate & rotate) | No | Yes (elevate & rotate) | No | No |
| Slide Range (Tabletop) | (N/A) | (N/A) | (N/A) | (N/A) | 480 mm (18.9″) | (N/A) | (N/A) | 0 - 380 mm |
| Table Dimension (Overall) | (N/A) | (N/A) | (N/A) | (N/A) | (N/A) | (N/A) | (N/A) | (N/A) |
| Seat Elevation Control | Floor-operated or hand lever (model dependent) | Floor-operated or hand lever (model dependent) | Floor-operated or hand lever (model dependent) | (Built-in mechanical counterbalance) | (N/A - separate chair) | (N/A - separate chair) | (N/A - separate chair) | (N/A - separate chair) |
| Fit 3 Instruments | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
- Space efficiency: Consolidates multiple instruments into one lane, freeing up clinical footprint.
- Improved workflow: The examiner can switch from autorefractor to phoropter to slit lamp without leaving the patient’s side.
- Durable construction: Robust frames and powder-coated finishes surface can stand up to daily cleaning and frequent use.
We specialize in providing high-quality diagnostic devices, refraction systems, low vision aids, and ophthalmic furniture — all backed by a complete supply chain, strong OEM/ODM service, and a customer-first philosophy.
