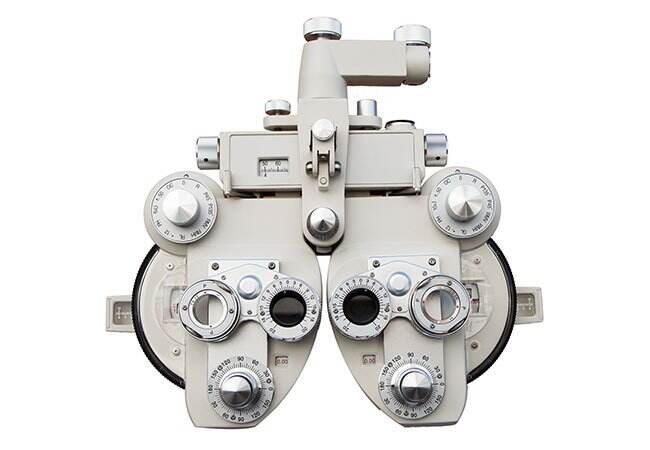

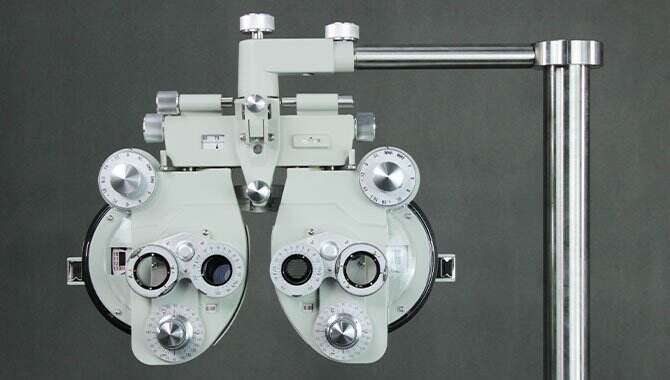

For subjective refractions, Hongdee’s manual phoropter offers a full suite of spherical, cylindrical, and prism lenses in a compact housing. Its smooth, gear-driven lens wheels ensure precise power selection, while the stable mounting frame attaches to most refraction desks. U can combine this with an auto refractometer for quick starting points, then refine manually.

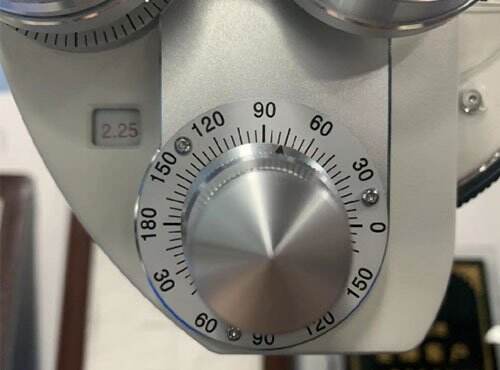

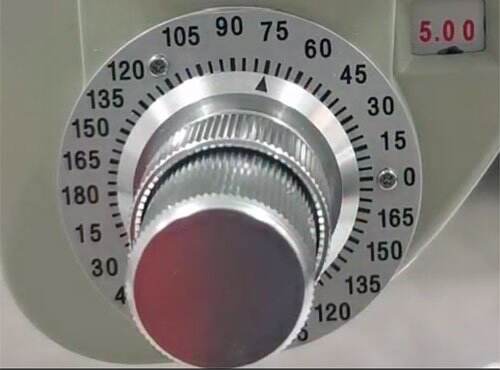

- Smooth dial operation: Clickless rotary mechanisms for quick power changes.
- High-quality optics: Achromatic lenses for minimized aberrations.
- Ergonomic design: Adjustable forehead for patient comfort.
| Sphere (SPH) : | -19.00D ~ +16.75D (0.25D increments, or 0.12D increments when auxiliary ±0.12D lens used) |
| (or, -29.00D ~ +26.75D (0.12D increments) (when optional ±10D lens used)) | |
| Cylinder (CYL) : | 0D ~ -6D (0.25D increments, or 0.12D increments when auxiliary ±0.12D lens used) |
| (0D ~ -8D (0.12/0.25D increments) | |
| (when optional -2.00D lens used)) | |
| Axis (AX) : | 0° ~ 180° (5° increments) |
| Cross-Cynlinder : | ±0.25D, reversed-type (synchronized AX) |
| ±0.50D (optional) | |
| Built-In Optical Filters : | Red, Green, Polarized, Maddox Vertical, Maddox Horizontal, Cross-Cylinder ±0.50D |
| Rotation Prism : | 0 ~ 20Δ (1Δ increments) |
| Convergence Adjustments : | 57~ 80 mm (optical axes aligned at the distance of 400 mm from cornea vertex, 2 mm each for left and right) |
| PD Distance Adjustment (PD) : | 48 ~ 80 mm (1 mm increments) |
| Vertex Distance (VD) : | 13.75 mm |
| Field of view : | 19 mm |
| Other Information | |
| Head-Support Adjustment : | ±16 mm (front, back) |
| Dimensions : | 338 x 320 x 96 mm |
| Weight : | 5 kg (net) |
- Precision: ±0.12 D lens increments guarantee accurate prescriptions.
- Durability: Robust metal construction withstands high-volume use.
- Upgradeable: Optional digital clickless module for integration with phoropter management software.
