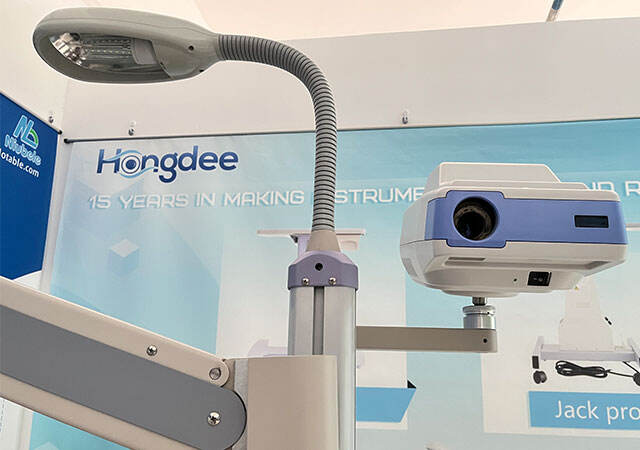

In Hongdee, the ophthalmic chart projector is CP-100, our model brand. It has some leading features as below:
● Easy installation and maintenance
● Customer programmable
● Display single icon
● Tilted placement
● Standard parts
Hongdee manufactures high-quality ophthalmic chart projectors for ophthalmic refraction units. We designed the chart projectors with a halogen lamp or led lamp.
If you need an ophthalmic chart projector for your business, you can send us your inquiry now. Also, you can select from our wide range of other ophthalmic equipment on our websites.
- Multiple charts: Includes high-contrast Snellen, ETDRS, and contrast sensitivity options.
- Remote control: Wireless remote advances slides and adjusts brightness.
- Quiet operation: Brushless motor ensures near-silent slide changes.
| Projection distance | 1.5~7 meter |
| Projection magnification | 30x(at 5m) |
| Projection size | 330x270mm (at 5m) |
| Chart Switching speed | 0.01~0.02S |

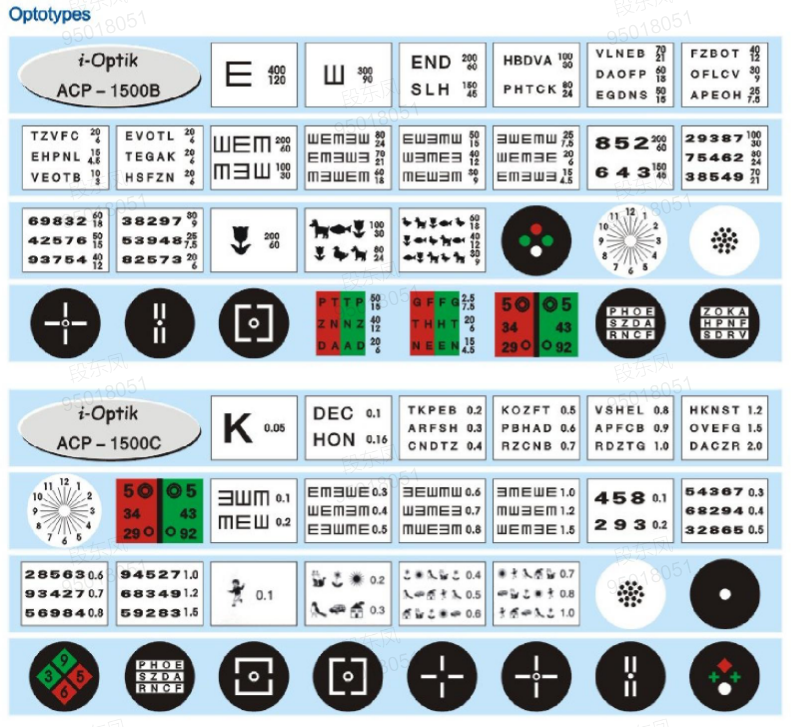

| Mask number | 1 open, 5 horizontal lines, 8 vertical lines, 21 single letters, 1 red/green |
| Mask Switching speed | One mask per 0.01~0.02S |
| Program | 2 sets programs, each program contains up to 30 steps |
| Lamp | 12V、50W (halogen lamp)12V、10W(LED) |
| Power saving function | Will automatically standby in 10 min |
| Power source | AC 220V, 50Hz or 110V, 60Hz |
| Power consumption | 80 W |
| Dimensions | 320mmx218mmx240mm |
| Net weight | 7.2 KG |
| Standard accessories | Remote control, polarized metal screen, halogen lamp, polarizedglasses, fuses(2), battery(2) |
| Optional accessories | Floor stand, Wall stand |
- Large display capability: Up to 6 m throw distance with minimal distortion.
- Energy efficiency: LED light source reduces power consumption by 60% vs. halogen.
- Low maintenance: No periodic bulb replacements for ≥20,000 hours lifespan.
We specialize in providing high-quality diagnostic devices, refraction systems, low vision aids, and ophthalmic furniture — all backed by a complete supply chain, strong OEM/ODM service, and a customer-first philosophy.
